Subaru releases the XV Hybrid in 2020 model upgrade

Subaru XV Becomes a Hybrid

2020 Subaru XV Hybrid 6 city shotSubaru releases the XV Hybrid

Subaru XV, a multi COTY award winner at OzRoamer, now comes in a mild hybrid version. These are available now and in fact, Subaru is in the pleasant position of having the first 4-5 months allocations already pre sold.

We didn’t have a chance to drive the Hybrids at the Press Release that will come in a few weeks, so here are the details. XV Hybrid is priced from $35,580 MLP*

Subaru’s first steps in the hybrid arena form part of a long-term strategy that will produce a variety of next generation power plants and technologies in the coming years. As of the launch date Subaru has already achieved over 500 Forester and XV hybrid sales with fleet customers. And another 200 odd private customer orders.

XV Hybrid offers over 14% improvement in fuel efficiency over equivalent petrol variants in the urban ADR cycle and over 7% improvement in the combined ADR cycle. There is a slight 100kg weight penalty with the new engine.

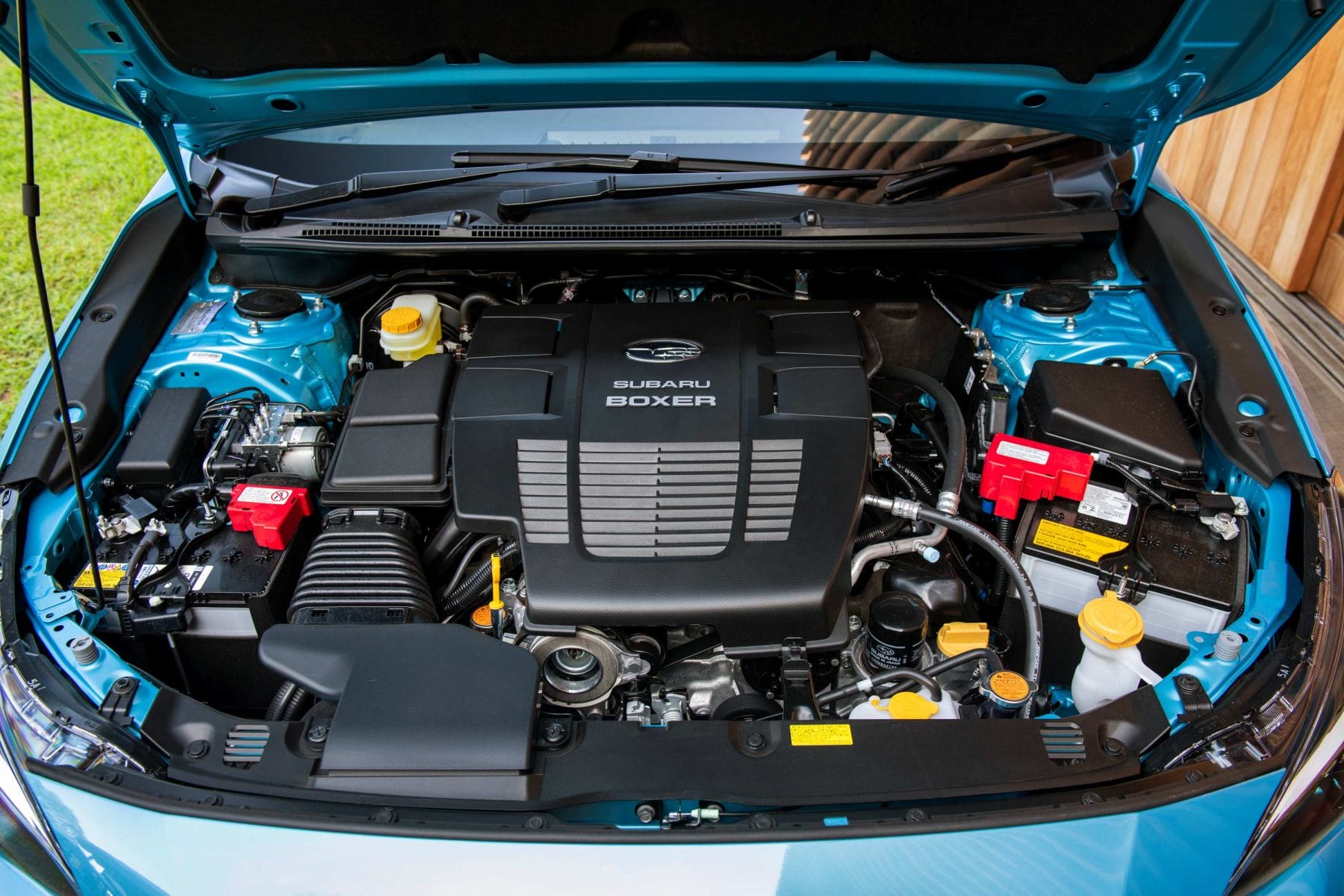

2020 Subaru XV Hybrid 1 engine

XV Hybrid e-boxer engine

The XV Hybrid model is an addition to the range and features e-Boxer power – a 2.0 litre horizontally opposed Boxer engine linked via Motor Assist to a high voltage lithium ion battery, offering fuel economy benefits, particularly in congested city driving.

The four cylinder 2.0 litre engine produces 110 Kilowatts of power at 6,000 rpm and 196 Newtonmetres of torque at 4,000 rpm and features the efficient intake/exhaust Active Valve Control System (AVCS).

The electric motor produces 12.3 kW of power and 66 Nm of torque, and is self-charging, via kinetic energy captured by regenerative braking and coasting. The XV retains the CVT and X Mode AWD SYSTEM.

The e-Boxer logic adjusts the power split between petrol and electric to match driving conditions and enhances the smoothness and linear feel of acceleration. .

It automatically changes between three modes:

  • Motor Assist EV driving
  • Motor Assist electric (EV) + petrol engine driving, and;
  • Petrol engine driving

From standstill or at low speed, the vehicle is powered by the electric motor only, for quiet, zero-emission driving.

Depending upon driving environment, vehicle and battery condition, it can operate in fully electric mode up to 40 km/h.

When driving in fully electric mode (both forward and reverse), the Pedestrian Alert system emits a sound, to alert people in close proximity. The system operates when the vehicle speed is 24 km/h or less.

At medium speeds, combined power from both the electric and petrol engine produce responsive, linear and more fuel efficient acceleration.

At high speed, the Boxer petrol engine exclusively powers the vehicle, while regenerative braking or coasting with foot off the accelerator, recharges the lithium ion battery.

Under certain driving conditions above 40 km/h, when decelerating or coasting and the battery is charging, the petrol engine can turn off, achieving fuel saving.

As soon as the accelerator is pressed, the engine will re-start.

Depending upon driving style, the e-Boxer hybrid system can offer improved fuel consumption particularly in urban, stop-go traffic.

It also eliminates the unnatural braking feel common to some electric-only vehicles.

The e-Boxer hybrid system uses kinetic energy by converting it into electricity, delivered to the battery located in the sub cargo floor, together with the drive motor inverter and DC/DC converter. All are installed in a high-strength frame, with sound dampening and moisture-repelling qualities.

The electric motor assist and battery pack are aligned longitudinally, with the motor located near the vehicle’s centre of gravity, while the battery and other components are above the rear axle, also contributing to low centre of gravity and optimising front/rear weight distribution.

An unobtrusive cooling system draws air from the cabin to help maintain the battery at operating temperature and to help ensure better longevity.

As with the entire Subaru new vehicle range, all hybrid variants have a five-star rating for occupant safety from the Australasian New Car Assessment Program (ANCAP).

All Subaru hybrids purchased by private buyers for private use offer a five year unlimited kilometre warranty, plus an eight-year 160,000 km lithium ion battery warranty.

*MLP – Manufacturers List Price includes GST and LCT but excluding statutory charges, dealer costs and dealer delivery. See your dealer for RDAP. Does not include price of any options.

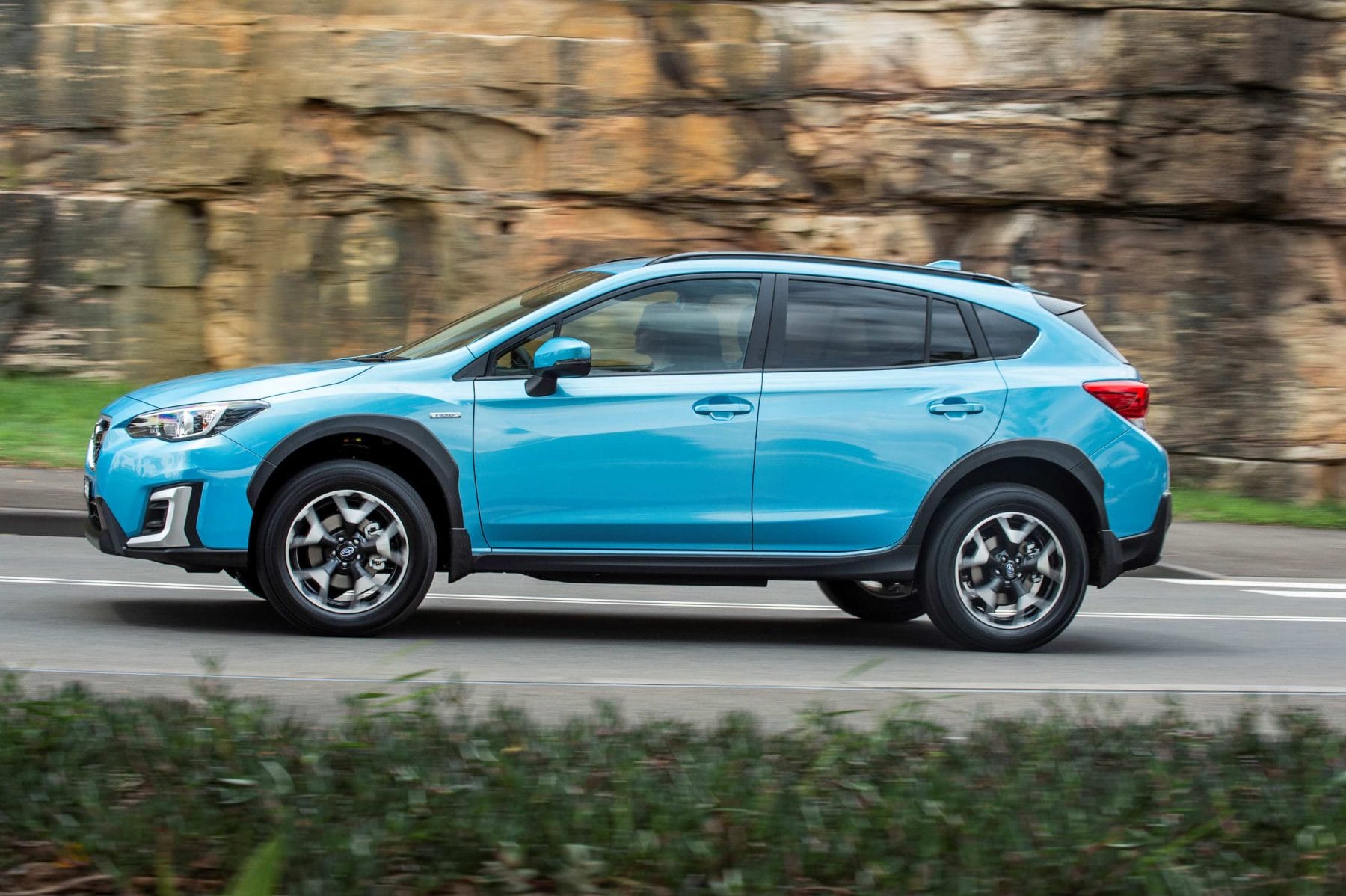

2020 Subaru XV Hybrid 2 profileXV HYBRID AWD MY20 – MODEL SPECIFICATIONS AT A GLANCE:

SAFETY

  • ABS anti-lock brakes with four-wheel discs and Electronic Brakeforce Distribution (EBD)
  • Active Torque Vectoring
  • Auto dimming rear view mirror
  • Brake Assist
  • Child seat anchor points on back of rear seat; ISOFIX outer rear seats
  • Curtain airbags
  • Driver’s knee airbag
  • Dual front airbags
  • Dual side airbags
  • Dusk sensing auto-off headlights
  • EyeSight driver assist, featuring:
  • Pre-collision braking
  • Adaptive cruise control
  • Pre-collision throttle management
  • Lead vehicle start alert
  • Lane departure warning
  • Lane Keep Assist
  • Front LED fog lights
  • Front seatbelts with pretensioners and load limiters
  • Front height adjustable seatbelt anchors
  • Pedestrian alert system
  • Rain sensing front windscreen wipers
  • Rear door child lock
  • Rear seat reminder
  • Rear view camera
  • Ring-shaped reinforced passenger cabin
  • Seatbelt indicator lights
  • Side intrusion bars
  • Symmetrical All-Wheel Drive (AWD)
  • Three-point A/ELR rear seatbelt
  • Tyre pressure monitoring system
  • Vehicle Dynamics Control
  • Vision Assist:
  • Blind spot monitoring
  • Lane change assist
  • High beam assist
  • Rear cross traffic alert
  • Reverse automatic braking
  • X-Mode

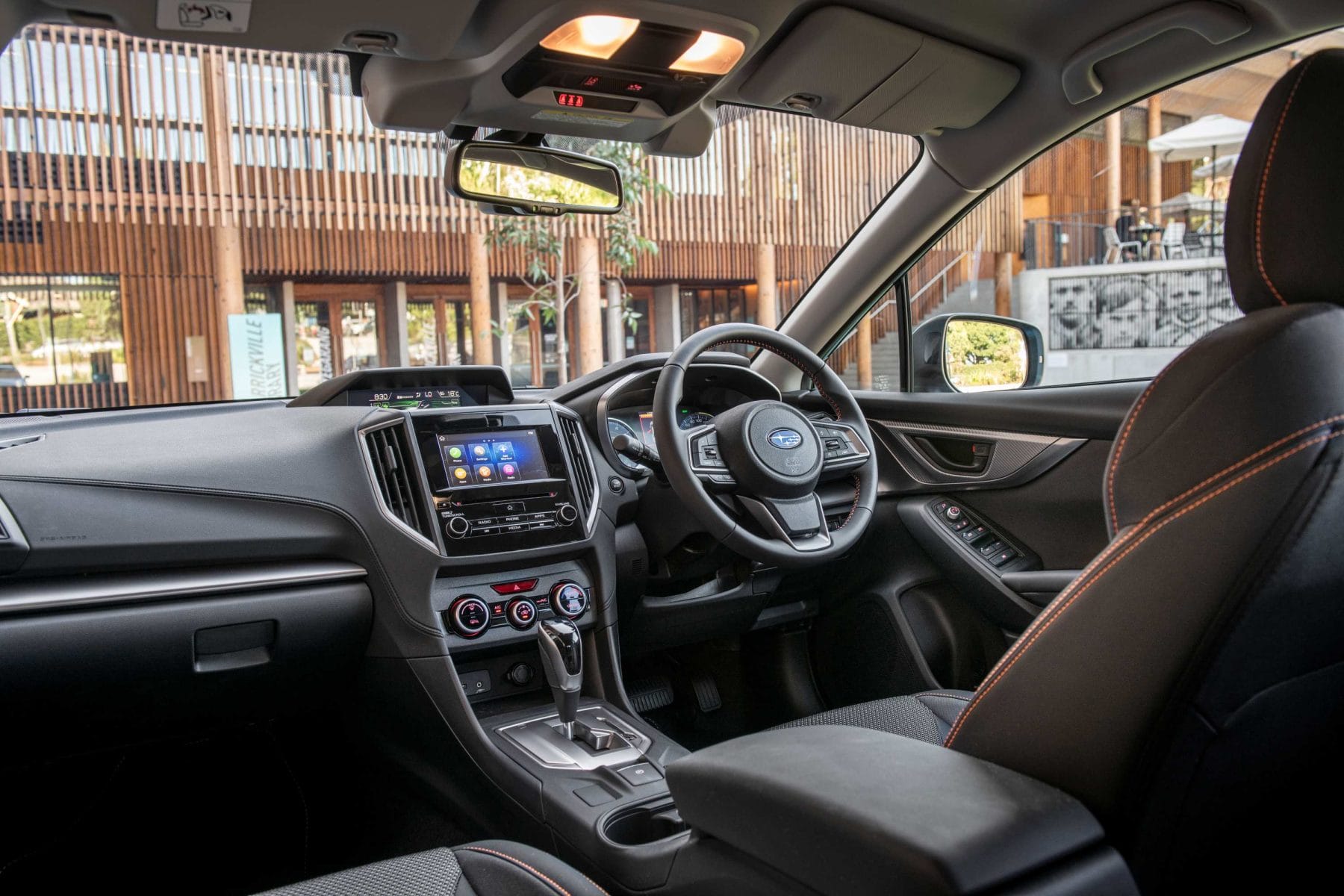

2020 Subaru XV Hybrid 5 interior

INTERIOR

  • 6.5-inch infotainment display, Apple CarPlay™ and Google Android Auto™ compatible, digital radio (DAB+), six speaker audio, steering wheel controls
  • Automatic climate control air conditioning
  • Bottle holders in all doors + two cup holders in centre console & rear armrest
  • Cargo area light
  • Cargo hooks
  • Cargo security blind
  • Central locking – remote
  • Cruise control – steering wheel buttons
  • Driver’s footrest
  • Energy flow display
  • Height and reach adjustable steering column
  • Height adjustable driver’s seat
  • Immobiliser security system
  • Leather finish steering wheel and gear shift
  • Lineartronic® Continuously Variable Transmission with paddle shift
  • Map lights (2)
  • Power steering, folding mirrors and windows
  • Premium cloth trim – charcoal colour
  • Remote fuel lid release – tethered fuel cap
  • Seatback pocket (front passenger side)
  • Two remote central locking keys
  • Vanity mirrors
  • 60/40 split-fold rear seat
  • 12V/120W power jacks (two)

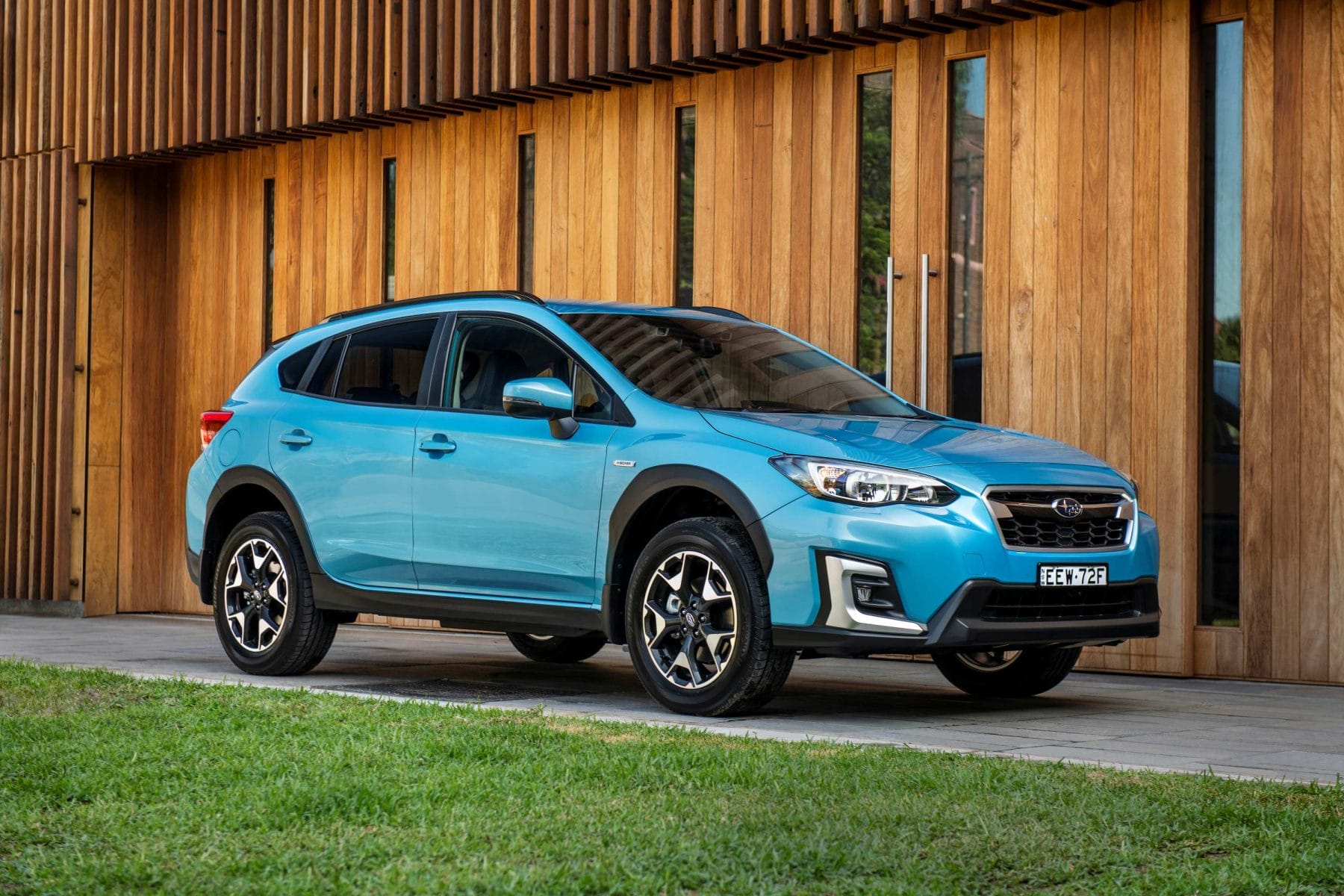

2020 Subaru XV Hybrid 3 front qtr

EXTERIOR

  • 17-inch alloy wheels (17x7J, with a 225/60R17 99H tyre)
  • Colour-coded mirrors and door handles
  • Heated door mirrors
  • Rear privacy glass
  • Rear roof spoiler with LED brake light
  • Rear roof mounted shark fin radio antenna
  • Rear wiper
  • Roof rails – black

2020 Subaru XV Hybrid 4 grill

OTHER FEATURES

  • Electronic Throttle Control (ETC)
  • Subaru Global Platform
  • Five-year unlimited kilometre warranty
  • Eight-year/160,000 km warranty – Lithium-ion battery
  • 2.0 litre DOHC direct injection horizontally opposed e-Boxer engine produces 110 Kilowatts of power at 6,000 rpm and 196 Newtonmetres of torque at 4,000 rpm
  • 12-month/12,500 kilometres Capped Price Service schedule
  • Electric motor produces 12.3 kW and 66 Nm

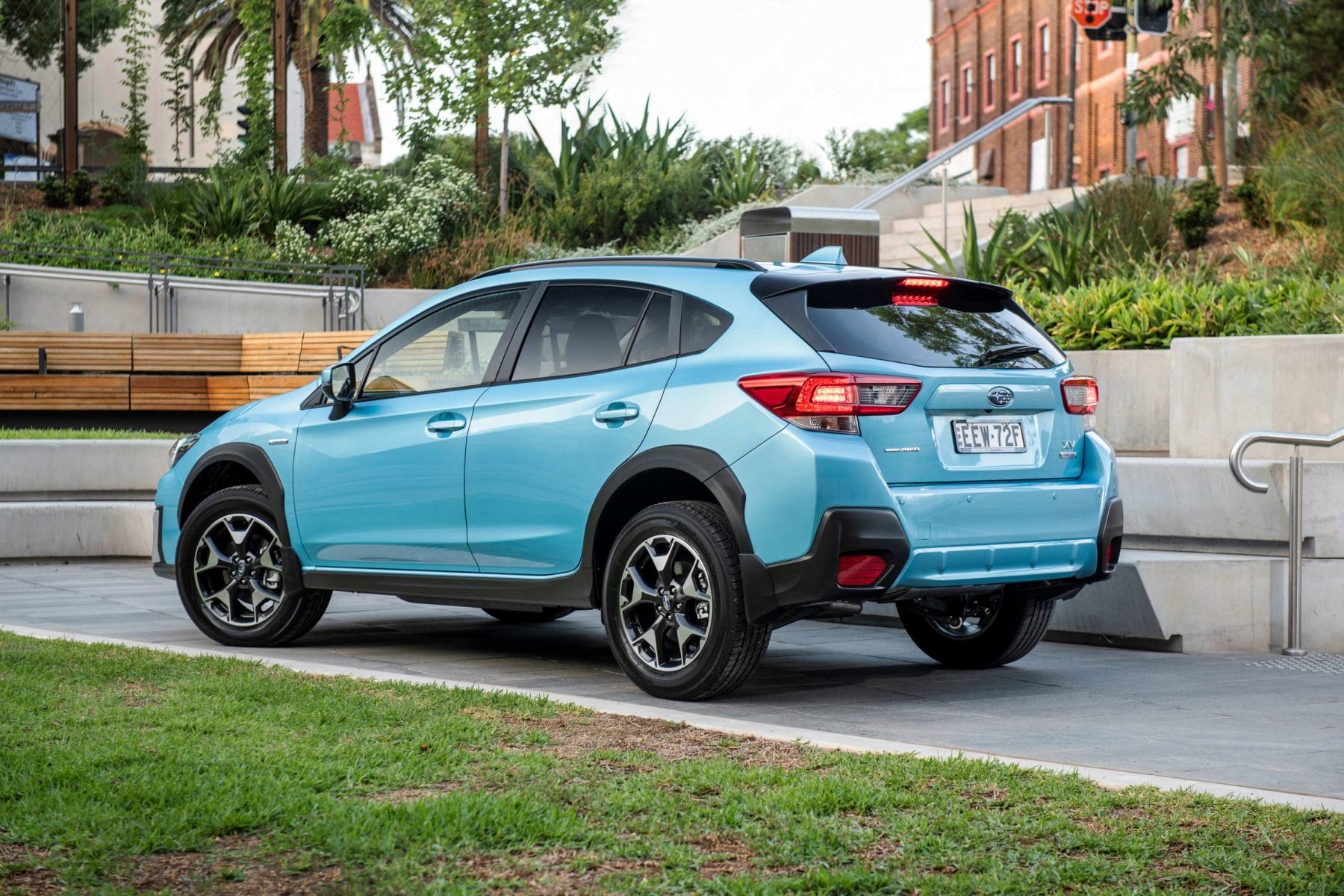

2020 Subaru XV Hybrid 7 rear



XV HYBRID AWD ENGINE SPECIFICATIONS



Type

Cylinders

Displacement

Bore x stroke

Compression ratio

Cam-train system

Fuel system

Maximum power

Maximum torque

Emissions



Electric motor:

Power

Torque





Horizontally opposed, naturally aspirated

Four

1,995 cc

84 x 90

12.5:1

DOHC with dual AVCS

Direct Injection, Electronic Throttle Control

110 kW/6,000 rpm

196 Nm/4,000 rpm

EURO 6



Permanent magnet AC synchronous motor

12.3 kW

66 Nm



TRANSMISSION – LINEARTRONIC CONTINUOUSLY VARIABLE

First 3.533 (Manual mode)
Second 1.892 (M mode)
Third 1.474 (M mode)
Fourth 1.228 (M mode)
Fifth 1.024 (M mode)
Sixth 0.852 (M mode)
Seventh 0.682 (M mode)
Reverse 3.689
Final reduction 3.700

EXTERIOR DIMENSIONS AND WEIGHT

Overall length mm 4,465
Overall width mm 1,800
Overall height mm 1,595 (with roof rails)
Wheelbase mm 2,665
Track – front mm 1,550
Track – rear mm 1,555
Min. ground clearance mm 220
Kerb weight kg: 1,576
FUEL
Fuel consumption (L/100km) combined:



6.5



Carbondioxide (g/km) combined:



147



Fuel tank capacity 48 litres
Minimum fuel requirement: 91 RON

STEERING, BRAKES, TYRES & TOWING

Steering Electric power assistance rack and pinion
Turning circle (metres) 10.8
Turning radius 5.4
Suspension:

Front



Rear



MacPherson-type struts, lower L-arms, coil springs, stabilizer bar

Double wishbone, coil springs, stabilizer bar

Brakes (mm):

Front

Rear



Ventilated discs

Ventilated discs

Tyres: 225/60R17 99H



Rim:



17-inch alloy x7J



Towing capacity (kg):









Maximum towball download (kg):





With brakes:

1,270

Without brakes:

650



127
